From 1965 to 70

1965 Honda bikes





From 1965 to 1973, First Honda Trials Bikes


Ken Ives' S90 Honda Trials Special


Ken Ives was a Honda dealers that made one of the first transformations from the "street" Hondas to ride on Trials races. Ken Ives took a 1965 Honda S90 and made following modifications and improvements to well adapt on atrials riding:
He replaced the tyres, made a wider swing arm, of course improved the position and design of the foot rests, special exhaust, and add a bash plate to protect the bootom engine.
Engine was a lttle 90cc OHC, developing 8hp power, but strong enough to start on the first trial races.   Anounced sales price was 159GBP taxes included and 1-2 weeks delivery time.

In 1965 Clive N Mills was given a contract with Ken for one year, thanks to his son Andrew ho had the kindness to share me pictures and this info we can now enjoy with these documents.     © Thanks to Andrew Mills (Clive N Mills son)   At same time the Japanese Hideo Tanaka made his own transformation and rode with his S90. Tanaka, some time later was working on the RTL305 development.   In 2006, Kojiro Mori entered at Kinlochleven Scotish Pre 65 2-Day with this machine ( an S90 replica, the original one owns to Olivier Barjon who had the kidness to send me below nice pictures, after Jean and Pascal pictures)     Nice Kojiro's picture thanks to good friend of this site Jean Caillou who rode and travelled with him to the Scottish  that year. Copyright picture © Pascal Houdard.   Kojiro & Mick Andrews at Kindlochleven. Picture thanks to Jean Caillou. Funny detail is the RSC sticker on Kojiro's helmet, as Jean remind me this was the old RSC logo. Thanks Jean!


Thanks to Olivier Barjon
THE HONDA S90 TRIAL

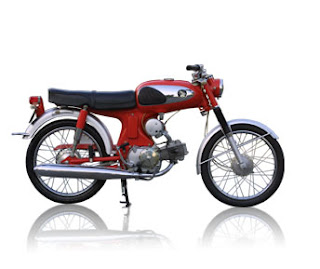

The S90 original street version



  The S90 Trials original version thanks again to Olivier Barjon

Arie Bottinga from Holland made this below pictures nice Ives Honda S90 replica. He is going to use it for Pre'65 Classic trial competition in Holland.

The engine now is 113 cc and has a longer stroke. The engine has a Japanese rotary shift pattern 0-1-2-3-4-0-1-2- etc.

Arie, also made this special website were he deeply explained the restoration process. Very interesting. Thanks Arie to share your nice work and pictures.



https://s90hondatrial.wordpress.com/





Later, around 1967, 68 Kevin Ives built a new Honda Trials bike based on the CB 160 and CD 175 engine. Of course he replaced the wheels, tyres, rear suspension, also he changed the forks, special twin exhaust, frame with a lot of improvements like Camber angle, swing arm, reinforced sections, bash plate... Engine also was modified, low compression, lower gearing,..
Really a nice bike!!



Peter Gaunt's Honda History

Peter Gaunt riding a Suzuki trials

  Peter Gaunt was the first engineer who in 1973 developed a serious transformation using a Honda bike as a base. The bike was sold under the Jefferies Honda name, this is because Jefferies bikes, located at Shipley, Yorkshire, was the dealer. The bike was offered ad L469!! Small series were made, no more than 20 units.

  Almost two units still alive!!

Thanks to Carlo, from Italy, I found an original Peter Gaunt's Honda Jefferies, and thanks generosity of Carlo to share these pictures, we can enjoy today with this nice bike survivor.



  I also found another original one, and thanks to John comments we know that the bike was from 1973. You can find pictures on the excellent and maybe the best Honda trials bike web page: www.honda-trials.com The bike is from Adres Cook, and you can see it on following link:  http://www.honda-trials.com/_sgg/m1ma_1.htm    The Jefferies Honda XLS
  Gaunt started using a XL250 (trail/enduro bike) but modifying several points in order to have a competitive trial bike.
The FRAME
Based on the original XL250, Peter Gaunt moved some degrees the head in order to improve the CASTER angle. Of course all electrical system, battery,lights, etc was rejected. Metal Mudguards were replaced for a plastic ones Buttom tubes were also cutted Seat dimension was redefined Swinging arm improved to reduce the wheels distance Brakes and suspensions were respected due to a reasonable good function and quality. And some more parts also were improved or modifyed (mirrors, side panels, air filter, exhaust silencer,etc) The wheelbase was finally 1.346cm and the weight 104 Kg (maybe the worst on this bike)
The ENGINE
The engine was a Honda Single Cylinder, air cooled with 248cc displacement. Four stroke with four valves on head moved by chain. Keihin 30mm Carburetor was replaced by a concentric 26mm Amal (only for dimensional reasons) Ignition eas by flywheel magneto The maximum power was 20CV at 8.000 rpm
The TRANSMISSION
Five speeds Primary drive, gear Final drive, chain Clutch type, wet multi-disc
  Actually Peter Gaunt still ride and participates on races as Two Scotish Days with his wonderfull Royal Enfield. This bike has a lot of clever solutions, and perfectly explains how this engineer could make a transformation so successful. The bike is today in Spain bought by a private friend collector.
